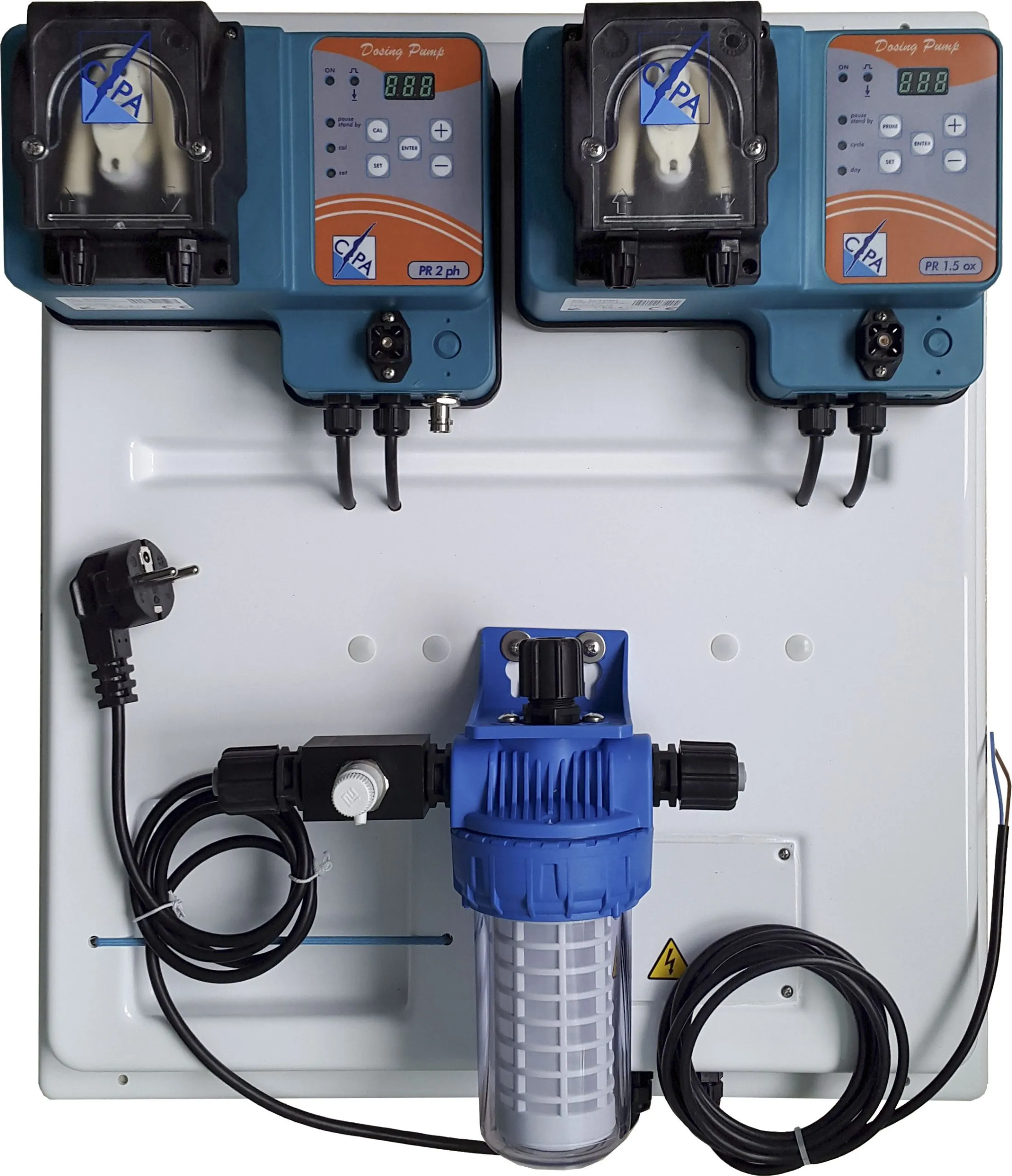

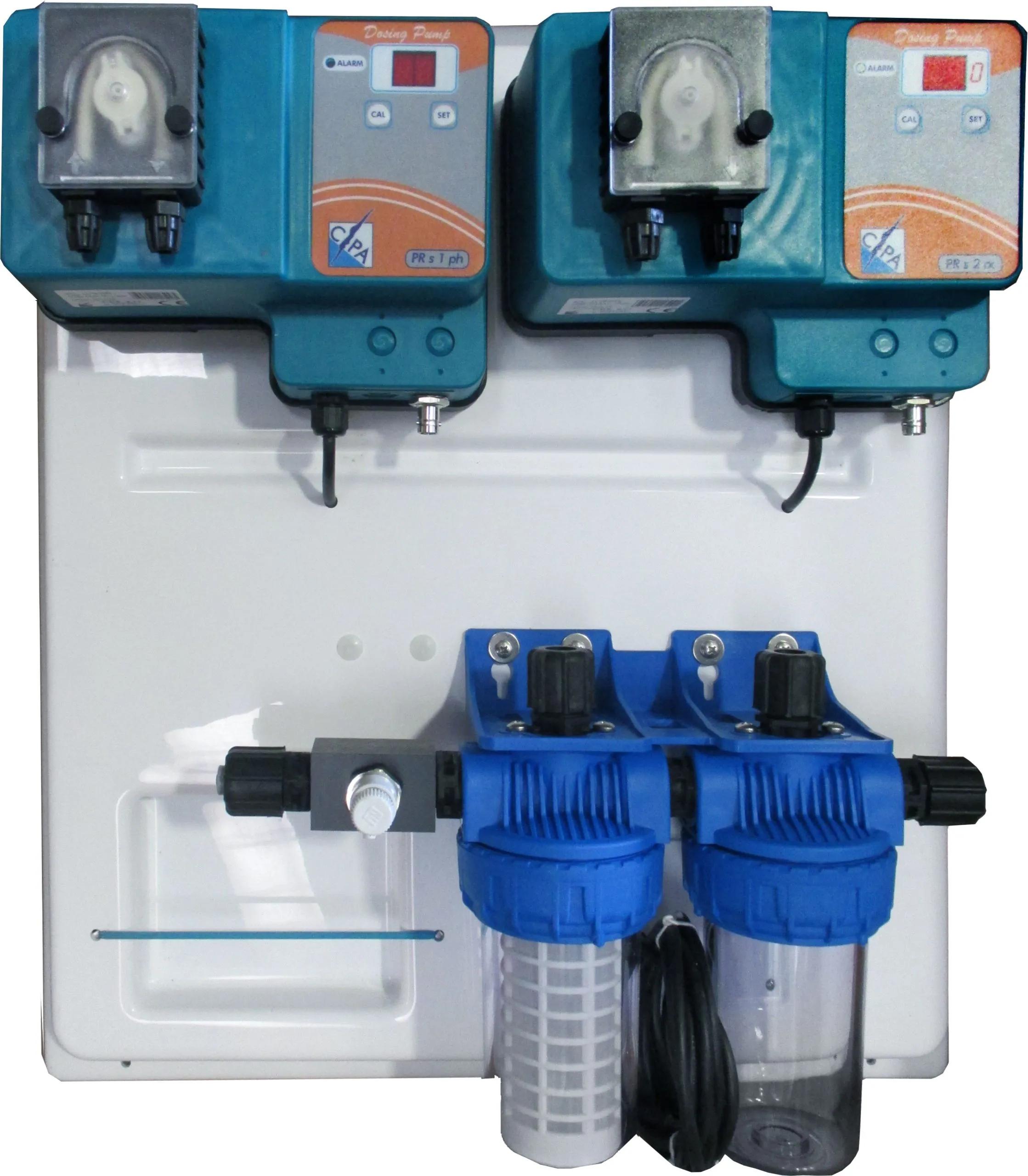

The control panel for pH and chlorine (redox) is a complete device for automatic water chemistry management in pools. Its indicative dimensions are 500 × 180 × 540 mm. It includes an integrated ORP/REDOX and pH measuring instrument with proportional regulation according to fixed preset values. Equipped with a flow sensor holder, 50-micron pre-filter, epoxy-bodied electrodes, and a 1-meter cable. The panel is powered via a Schuko plug and allows easy calibration using buffer solutions.

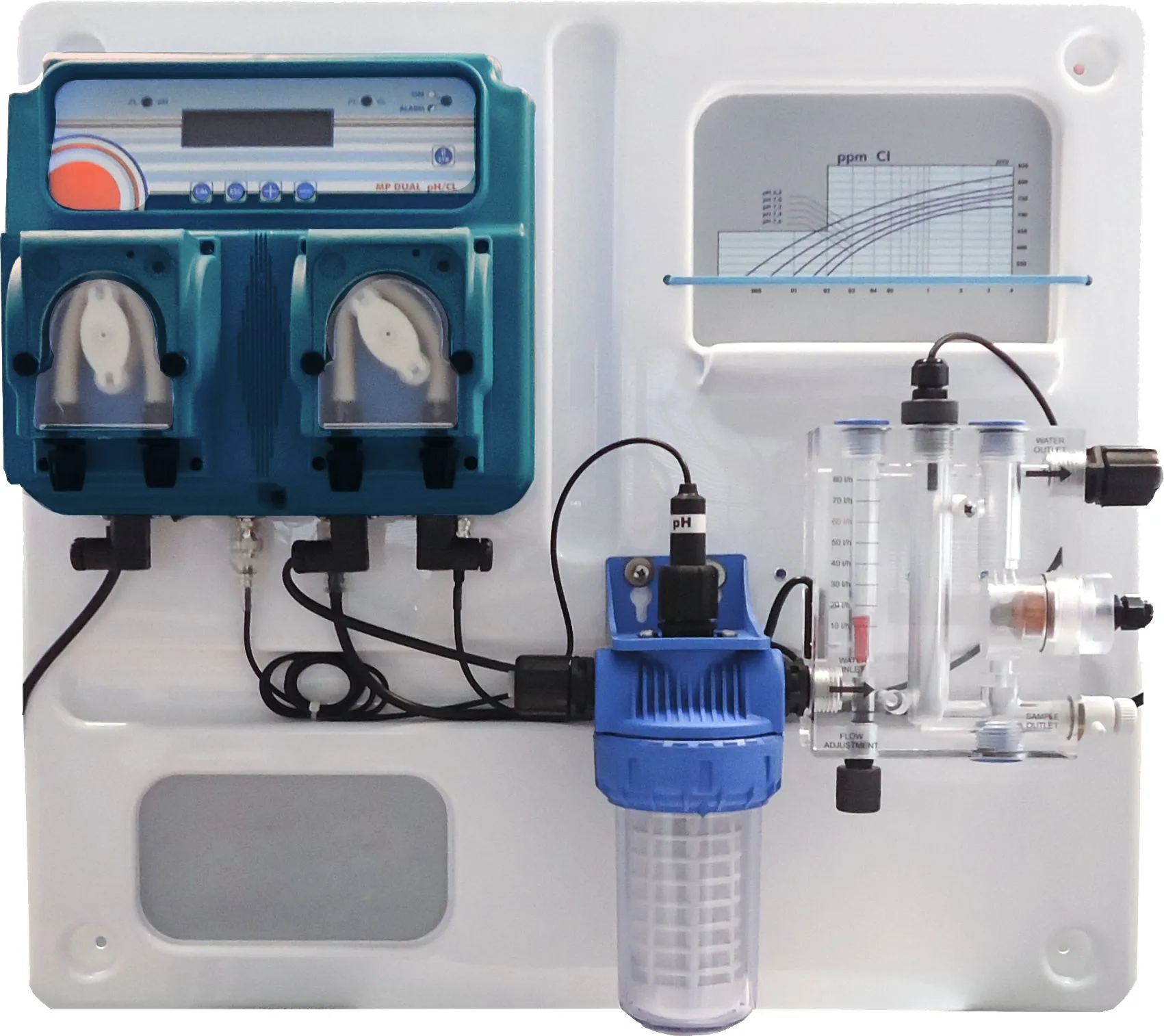

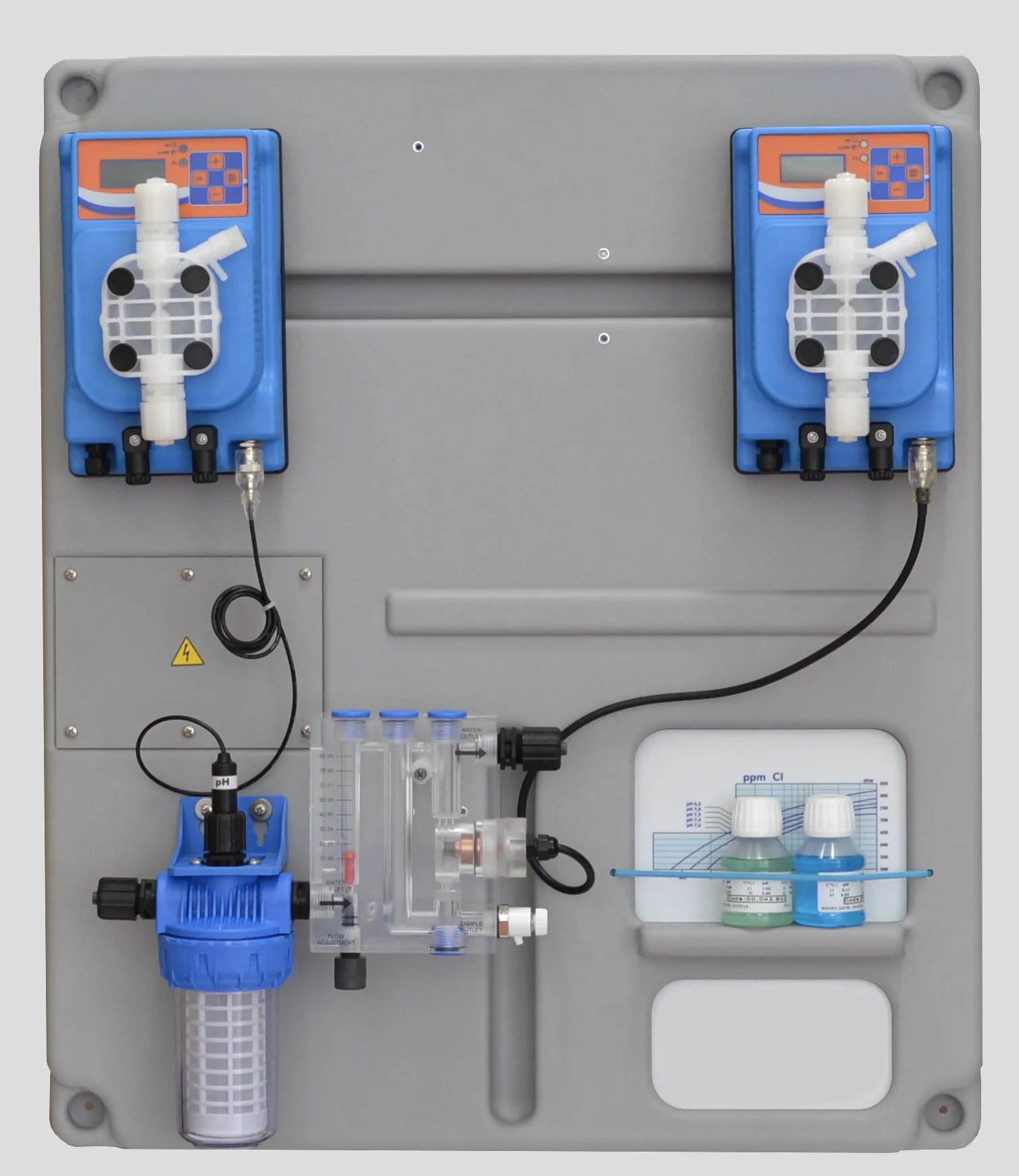

An IP65 electrically wired PVC panel includes an EL 10 dosing pump with an integrated instrument for displaying pH values and an EL 10 dosing pump for monitoring free chlorine in ppm. The system contains a washable 50-micron filter and a self-cleaning plexiglass flow sensor holder for chlorine, equipped with platinum and copper electrodes.
Connections for water supply are 8×12, and the flow sensor stops dosing when the system is not in operation. The panel is equipped with an overdose alarm, start delay, and instruments for controlling pH and chlorine with platinum and platinum-copper electrodes, including a sampling valve.

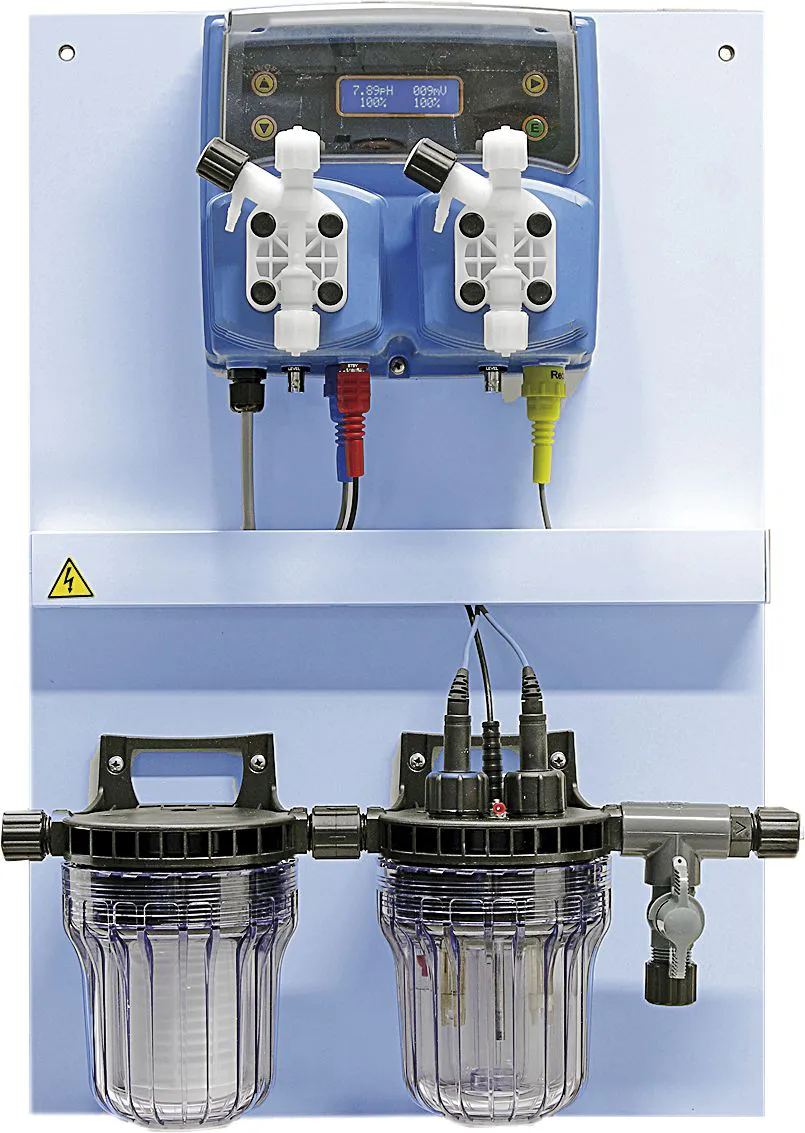

A pre-assembled panel for proportional regulation of pH and redox (chlorine) is designed for precise and automated chemical parameter control. Its dimensions are 400 × 600 mm and it includes high-quality components such as a VPHRHD 05 5 l/h dosing instrument, NFIL water purification filter, and redox (ERHS) and pH (EPHS) probes for accurate measurements.
The panel is also equipped with an NPED4 electrode holder for easy and secure probe installation, making it ideal for use in pools and water treatment plants.

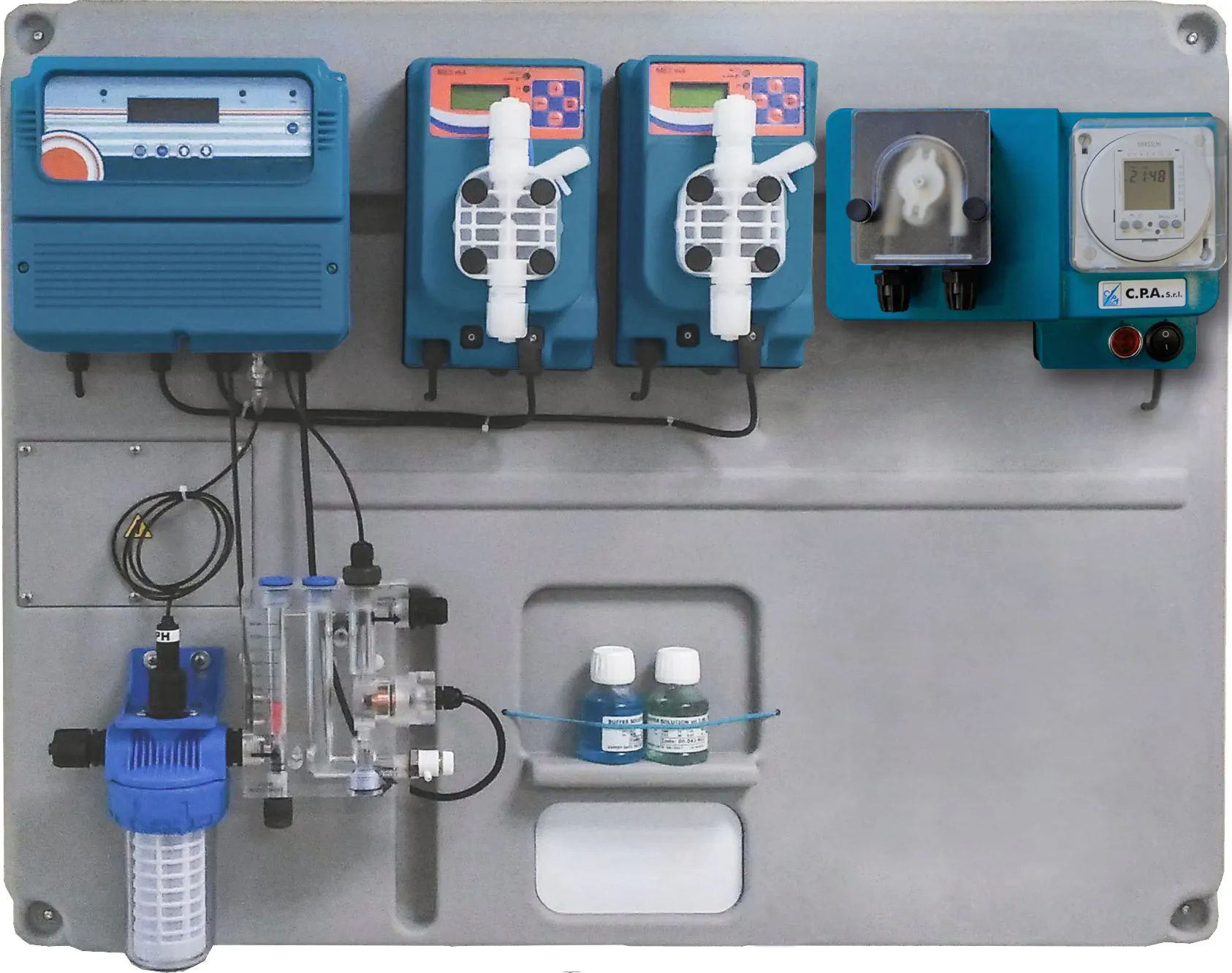

The control panel for pH, free chlorine, and flocculant is pre-assembled and ready to use for dosing and monitoring chlorine, pH, flocculant dosing, and real-time temperature readings. It includes dosing pumps with flows of 5 l/h for pH, 10 l/h for chlorine, and 2 l/h for flocculant, all with proportional dosing. The panel is made from electrically wired PVC with IP65 protection.
Equipped with a multi-parameter instrument with backlit display for pH and free chlorine, a timer for the flocculant pump, and a flow sensor that stops dosing when the system is off. It also includes pH electrodes with epoxy housing, a 50-micron filter, a potentiostatic probe, and 8×12 input connectors. The system is complete with an overdose alarm to prevent excess chemical dosing.
